Zero-Clearance Inserts Zero-Clearance Inserts Jet #DL-2 Leecraft Zero-Clearance Table Saw Insert 12-1/2"L x 3-3/4"W
Find the Leecraft Zero-Clearance Insert for your Jet Table Saw
Model DL-1U 13-3/8"L x 3-3/4"W - Fits Jet model CTAS-10
Model DL-2 12-1/2"L x 3-3/4"W - Fits Jet models JSL-10TS, JTS-10DD, Shopline
Model GE-2 14-31/32"L x 3-23/32"W - Fits Jet models 708100, 708481, 708482, 708483, 10" Workshop Table Saw, 708480K, JPS-10 ProShop
Model JT-164 12-1/2"L x 3-9/16"W - Fits Jet models JTS-10, JCS-10, JTAS-10, JWCS-10, JWTS-10
Model JT-2L 13-5/16"l x 3-11/16"W - Fit Jet models JTAS-10XL, XACTA Saw Left
Model JT-5 15-5/16"L x 4-1/4"W - Fits Jet model Deluxe XACTA Saw
Model JT-6 15-5/16"L x 4-1/4"W - Fits Jet model Deluxe XACTA Saw WITHOUT riving knife slot for dado or angle cuts
Model JT-7 14"L x 4-1/8"W - Fits Jet models 708490, 708491, 708492, 708493, 708494, 708495, JPS-10TS ProShop
Model JT-8 14"L x 4-1/8"W - Fits Jet models 708490, 708491, 708492, 708493, 708494, 708495, JPS-10TS ProShop WITHOUT riving knife slot for dado or angle cuts
Model JT-SS 12-9/16"L x 3-9/16"W - Fits Jet models JWSS-10LFR, JWSS-10PF, JWSS-10SPF, JWSS-CS, Super Saw
For step-by-step installation video CLICK HERE
BEFORE ORDERING: MEASURE YOUR SAW THROAT OPENING OR CURRENT INSERT AND COMPARE TO THE MEASUREMENTS GIVEN ON OUR WEBSITE. Jet has similar models with different size throat openings.

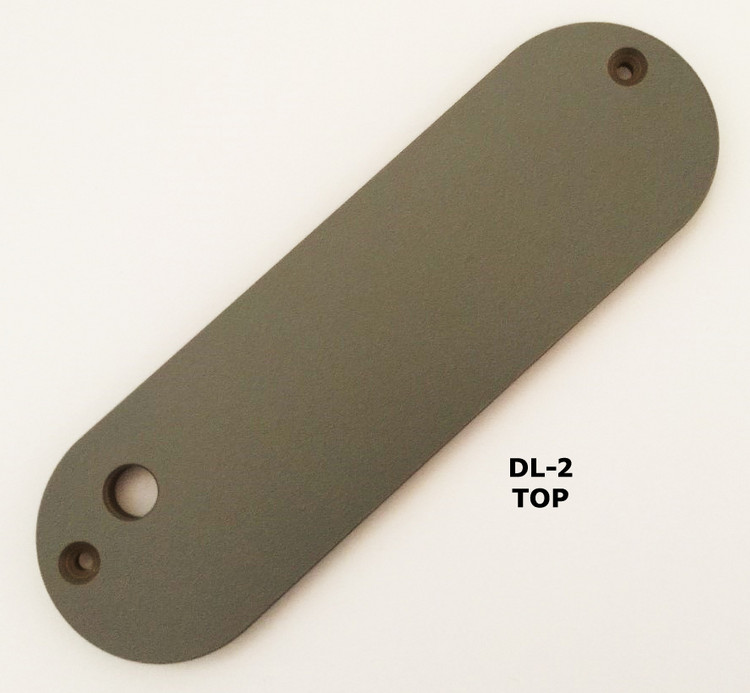

#DL-2 Leecraft Zero-Clearance Table Saw Insert fits DELTA 10" DIRECT DRIVE - Models include #34-670, #34-740 (Super-10), #36-380 (XL-10) #36-600, QT-10, TS-300 & TS-350, JET #JSL-10TS SHOPLINE and #JTS-10DD
Use MicroJig MJ Splitter Kits for added table saw safety. Available in THICK or THIN kerf they are easily installed and simple to align. Not for use with Leecraft inserts that already have the riving knife slot cut in. Intended for inserts WITHOUT the riving knife slot.
INSTALLING AND FITTING YOUR INSERT
- Lower the blade completely.
- Place insert in table with finger hole at front and starter pocket located over blade.
- Securely fasten insert down with the two (2) original screws. If necessary, enlarge clearance holes in insert to facilitate proper alignment of screws.
- If insert is not adequately flush with table top, remove and shim up with tape or other material. Repeat step (3).
CUTTING THE BLADE SLOT (KERF)
- Check that insert is securely fitted, and that blade is clear. Using a stick, reach under the table and rotate the blade manually to check for blade clearance.
- Fully cover the insert with a board, and clamp at each end to the table saw top. This safety precaution will also greatly reduce any chip-out on top surface of insert when blade penetrates.
- Re-connect power to saw. Switch on, slowly and cautiously raise blade up, to cut its way through the insert. KEEP HANDS OFF OF TABLE TOP, STAY CLEAR AND WEAR EYE PROCTECTION. Raise blade to maximum height at this time.
- Lower blade, turn off saw, and remove board. Your insert is now ready for use!
IMPORTANT TIPS FOR USE
- Only recommended for use with carbide tipped cutters.
- DADO BLADE - Use same procedures outlined above, but use additional caution due to excessive material being machined from insert during the slotting procedure.
- Under certain conditions, an undesirable scraping noise may be generated by your saw blade. Planer type blades and/or excessive arbor run-out, and/or blade distortion, may be causing intermittent contact with the insert slot. To remedy this, remove the insert and slightly widen the slot using a file or sanding paddle.
- Ideally, a separate insert should be used with each blade, dado stack, or angle set-up. This will insure a true "zero-clearance" effect and give you maximum benefit from your inserts.
See our Application Chart, or Contact Us for expert advice
